CS156 Recursion

Sierpinski Gasket

A Sierpinski gasket is three half-sized Sierpinski gaskets arranged in a triangle.

Recursion

In C it is legal for functions to call themselves. This is known as recursion.
Some computations lend themselves naturally to recursive implementations.
Recursive functions should
- simplify the implementation of a solution
- have a base case
- be used sparingly

Fibonacci sequence

n	1	2	3	4	5	6	7	8	9	10
F(n)	1	1	2	3	5	8	13	21	34	55

           ⎧ 1		       if n≤2
    F(n) = ⎨
           ⎩ F(n-1) + F(n-2)   otherwise

Fibonacci sequence

    fib(5)
    =                   fib(4)       +        fib(3)
    = [      fib(3)       + fib(2) ] + [ fib(2) + fib(1) ]
    = [ fib(2) + fib(1) ] +   1      +     1    +   1
    =     1    +   1      +   1      +     1    +   1
    = 5

Fibonacci sequence

    int fib(int which) {
        if (which <= 2)		// base case?
            return 1;
        return fib(which - 1) + fib(which - 2);
    }

At any point, there can be several calls to fib active. The computer keeps track of them.

Recursion: factorial

How many ways are there to arrange:
- one card: J (1)
- two cards: JQ QJ (2×1 = 2)
- three cards: JQK JKQ QJK QKJ KJQ KQJ (3×2×1 = 6)
- four cards: … (4×3×2×1 = 24)
In general, there are n × (n-1) × (n-2) × … × 3 × 2 × 1 ways to arrange n cards.
This function is called factorial: n!
1! = 1
n! = n × (n-1)!

Recursion: factorial

    int factorial(int n) {
   	if (n <= 1)
        	return 1;
        return n * factorial(n-1);
    }

The function divides the input into two cases.
- n ≤ 1 : return 1
- n > 1 : return n*factorial(n-1)
Since we are subtracting 1 from n at each successive call to factorial the recursion will stop when n becomes 1.

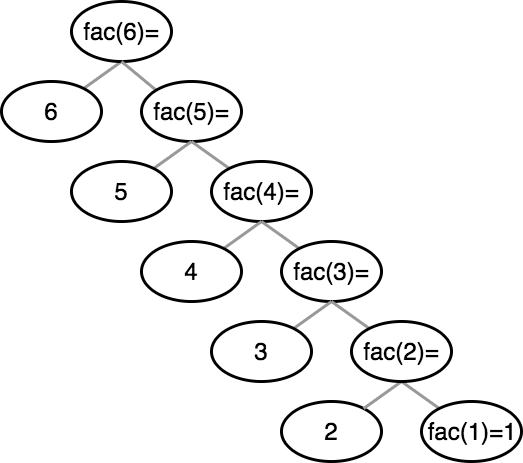

The factorial Example Continued

Take factorial(4) for example:
- factorial(4) → return 4*factorial(3)
- factorial(3) → return 3*factorial(2)
- factorial(2) → return 2*factorial(1)
- factorial(1) → return 1
- factorial(2) → return 2*1 → return 2
- factorial(3) → return 3*2 → return 6
- factorial(4) → return 4*6 → return 24
